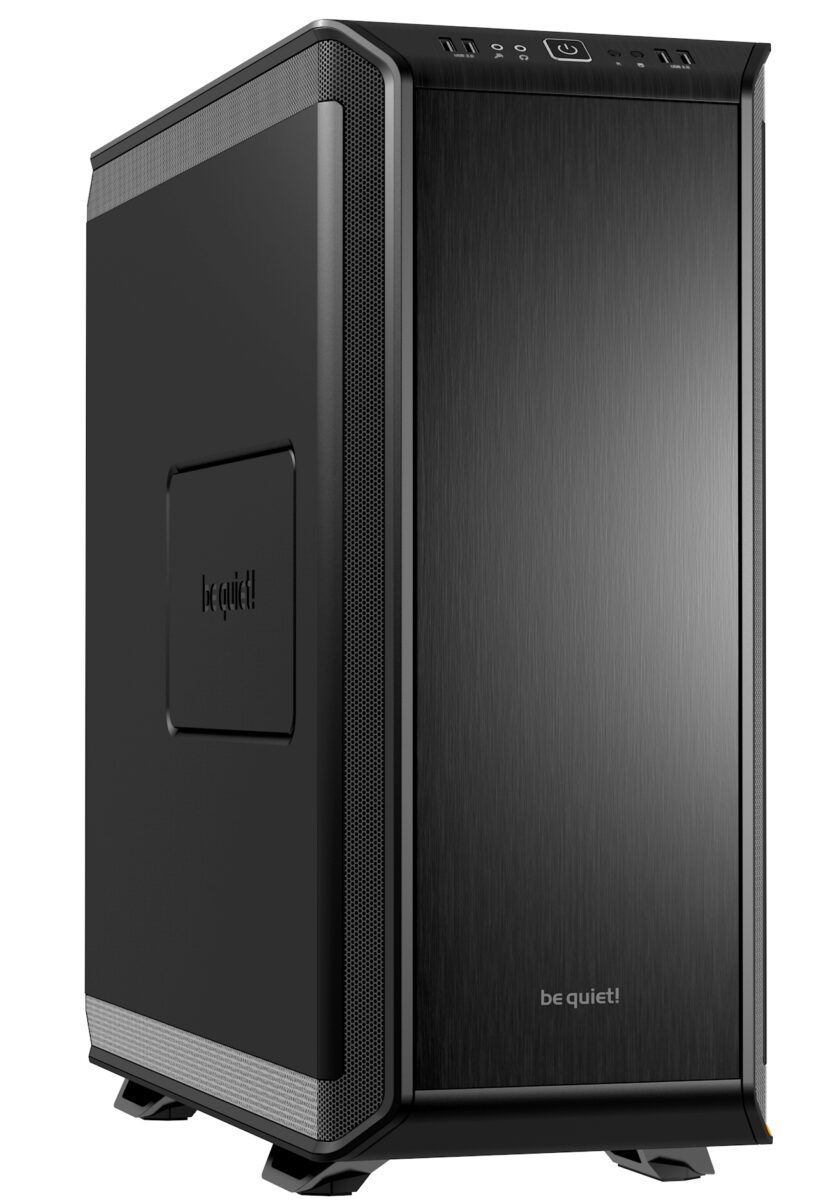

- Type: ATX Tower Case
- PSU: Without PSU
- Mainboard Support: E-ATX, XL-ATX, ATX, Micro ATX, mini-ITX
- Drive Bays 5.25": 2
- Drive Bays 3,5": 7
- Drive Bays 2,5": 15
- Expansion Slots: 8
- Cooling Fan Installed: 2x be quiet! Silent Wings 3 |140mm PWM on Front, 1x be quiet! Silent Wings 3 |140mm PWM Rear. The Silent Wings 3 feature a smooth-running 6-pole motor, fluid-dynamic bearing and funnel-shaped air inlets
- Optional Cooling Fan: Front (mm) 1x 140 (w/o ODD cage), Top (mm) 3x 140 / 4x 120 / 1x 180, Bottom (mm) 2x 140/120, Side panel (mm) 2x 120
- Optional liquid cooling system: 4 areas to install Top: 120, 140, 180*, 240, 280, 360, 420 Front: 120, 140, 240, 280, 360, 420 Rear: 120, 140, Bottom: 120, 140, 280 (radiator in mm)
- I/O: 2 x USB 3.0, 2 x USB 2.0, Audio in/out
- Side panel: Adjustable side panel cover that you can close for absolute silence, partly open for more air intake, or completely open with the possibility to mount up to two optional fans
- Max. Length Graphics Cards: 32,5 cm or without HDD slots 47.0cm
- Max. Height CPU Cooler: 18.5cm
- Sound insulation mats (top, front, side)
- Anti-vibration decoupled HDD / PSU / MB-tray / Fan
- Dimensions: 577 x 243 x 585 (L x W x H)
- Net Weight: 14,2 Kg
- Material: steel, ABS plastic, aluminum
- Color: Black
- Tool-Free Devices Installation, Cable Management System
- Εγγύηση: 3 χρόνια
|
- Type: ATX Tower Case
- PSU: Without PSU
- Mainboard Support: E-ATX, ATX, Micro ATX, mini-ITX
- Drive Bays 3,5": 7
- Drive Bays 2,5": 17
- Expansion Slots: 7+2
- Cooling Fan Installed: 1x be quiet! Silent Wings 3 | 140mm PWM on Front, 1x be quiet! Silent Wings 3 |140mm PWM Rear. The Silent Wings 3 feature a smooth-running 6-pole motor, fluid-dynamic bearing and funnel-shaped air inlets
- Optional Cooling Fan: Front (mm) 2x 140, Top (mm) 3x 140 / 3x 120, Bottom (mm) 1x 140/120, PSU shroud 1x 140/120
- Optional liquid cooling system: 3 areas to install Top: 120, 240, 360 Front: 120, 140, 240, 280, 360, Rear: 1x 140/120mm
- I/O: 2x USB 3.0, 1x USB 3.1 Type-C, Audio in/out
- Max. Length Graphics Cards: 28.6cm or without HDD slots 43.0cm
- Max. Height CPU Cooler: 18cm
- Sound insulation mats (top, front, side)
- Anti-vibration decoupled HDD / PSU / MB-tray / Fan
- Dimensions: 544 x 241 x 519 (L x W x H)
- Net Weight: 13.25 Kg
- Material: steel, ABS plastic, aluminum, 4mm tempered glass
- Color: Black with RGB LED front panel
- Tool-Free Devices Installation, Cable Management System
- Εγγύηση: 3 χρόνια
|
- Case Type: ATX Midi Tower
- PSU: Without PSU
- M/B Supported: ATX, Micro ATX
- Drive Bays 5.25': 1 Drives
- Drive Bays 3.5': 2 Drives
- Drive Bays 2.5': 2 Drives
- Expansion Slots: 7x slots
- Top I/O Port: 1x USB3.1 (Type A), 2x USB 2.0 Mic IN, Headphones OUT
- Cooling Fan: 1x 8cm rear fan
- Optional Cooling Fan: 1x 8/9cm rear fan, 1x12 cm front, 1x12cm side
- Dimensions w/Bezel (WxDxH): 370 x 175 x 410 mm
- Support VGA Card length: 340mm
- Support CPU Cooler: 145mm
|
- 850W Modular Power Supply
- Comforms ATX12V V2.51 and EPS 2.92 standard
- AC Input: Voltage 100-240V, Current 10-5A, Frequency 50-60Hz
- DC Out: +3,3V max 25A, +5V max 25A, +12V1 max 21A, +12V2 max 21A, +12V3 max 26A, +12V4 max 26A, -12V max 0,5A, +5Vsb max 3A
- Total Combine Power 850W
- 94% Energy Efficiency (80+ Platinum 230V EU Certified). Active PFC
- Connectors:
- 1x ATX-Motherboard (20+4-pin)
- 1x P8 (CPU)
- 1x P4+4 (CPU)
- 4x PCI-e 6+2-pin (GPU)
- 4x PATA 4-pin
- 11x SATA 15-pin (HDD, Drives)
- 1x FDD (Floppy)
- Fan Type: be quiet! Silent Wings 3 with 135mm fan
- OCP (over current protection), OVP (over Voltage protection), UVP (under Voltage protection), SCP (short circuit protection), OTP (over temperature protection), OPP (over power protection)
- MTBF: 100.000 Hours
- Safety Approvals: CE, CB, TUV, FCC, cTUVus, RCM, CU, BSMI, CCC
- Dimensions without cable: 170(L)x150(W)x86(D)mm
- Package Dimensions: 328(L)x248(W)x102(D)mm
- Total weight: 1.84Kg
- Color: Black
- Warranty: 5 years
|
- 550W Power Supply
- Comforms ATX12V V2.92
- AC Input: Voltage 200-240V, Current 4A, Frequency 50Hz
- DC Out: +3,3V max 20A, +5V max 20A, +12V1 max 45.83A, -12V max 0.3A, +5Vsb max 3A
- Total Combine Power 550W
- 89.1% Energy Efficiency (80+ Bronze Certified). Active PFC
- Connectors:
- 1x ATX-Motherboard (20+4-pin)
- 1x P4+4 (CPU)
- 1x P4
- 2x PCI-e 6+2-pin (GPU)
- 1x PATA
- 6x SATA
- Fan Type: Temperature-controlled quality fan with 120mm fan
- OCP (over current protection), OVP (over Voltage protection), UVP (under Voltage protection), SCP (short circuit protection), OTP (over temperature protection), OPP (over power protection), SIP (Surge & Inrush Protection)
- MTBF: 100.000 Hours
- Safety Approvals: CE, CB, TUV, CU
- Dimesions without cable: 150(L)x140(W)x86(D)mm
- Package Dimensions: 268(L)x195(W)x97(H)mm
- Total weight: 1.83Kg
- Color: Black
- Warranty: 5 years
|
- Type: ATX Midi Tower Case
- PSU: Without PSU
- Mainboard Support: ATX, Micro ATX, mini-ITX
- Drive Bays 3.5": 2
- Drive Bays 2,5": 6
- Expansion Slots: 7
- Cooling Fan Installed: 1x 120 mm fan (pre-Installed) (front)
- Optional Cooling Fan: 2x 120 mm fan or radiator (front), 1x 120 mm fan, 2x 120 mm fan or 2x 140 mm fan
- I/O: 2x USB 3.0 Type-A, 1x USB 2.0 Type-A, Audio in/ out
- Max. Length Graphics Cards: 35cm
- Max. Height CPU Cooler: 16.5cm
- Max. Length Power Supply: 21.5cm
- Max. Height Radiator incl. Fan (Top): 5.5cm
- Max. Height Radiator incl. Fan (Front): 6.4cm
- Dimensions: 424 x 206 x 481mm (L x W x H)
- Net Weight: 6 Kg
- Color: Black
- Side Panel: Tempered Glass Panel, Removable Dust Filters, 4-Port Addressable RGB Hub, Manual Color Control, Extra-Long Thumbscrew Slots for the Flexible Positioning of the HDD/SSD Cage, Detachable Front Panel, Removable HDD/SSD Cage
- Εγγύηση: 2 χρόνια
|
