| Content |

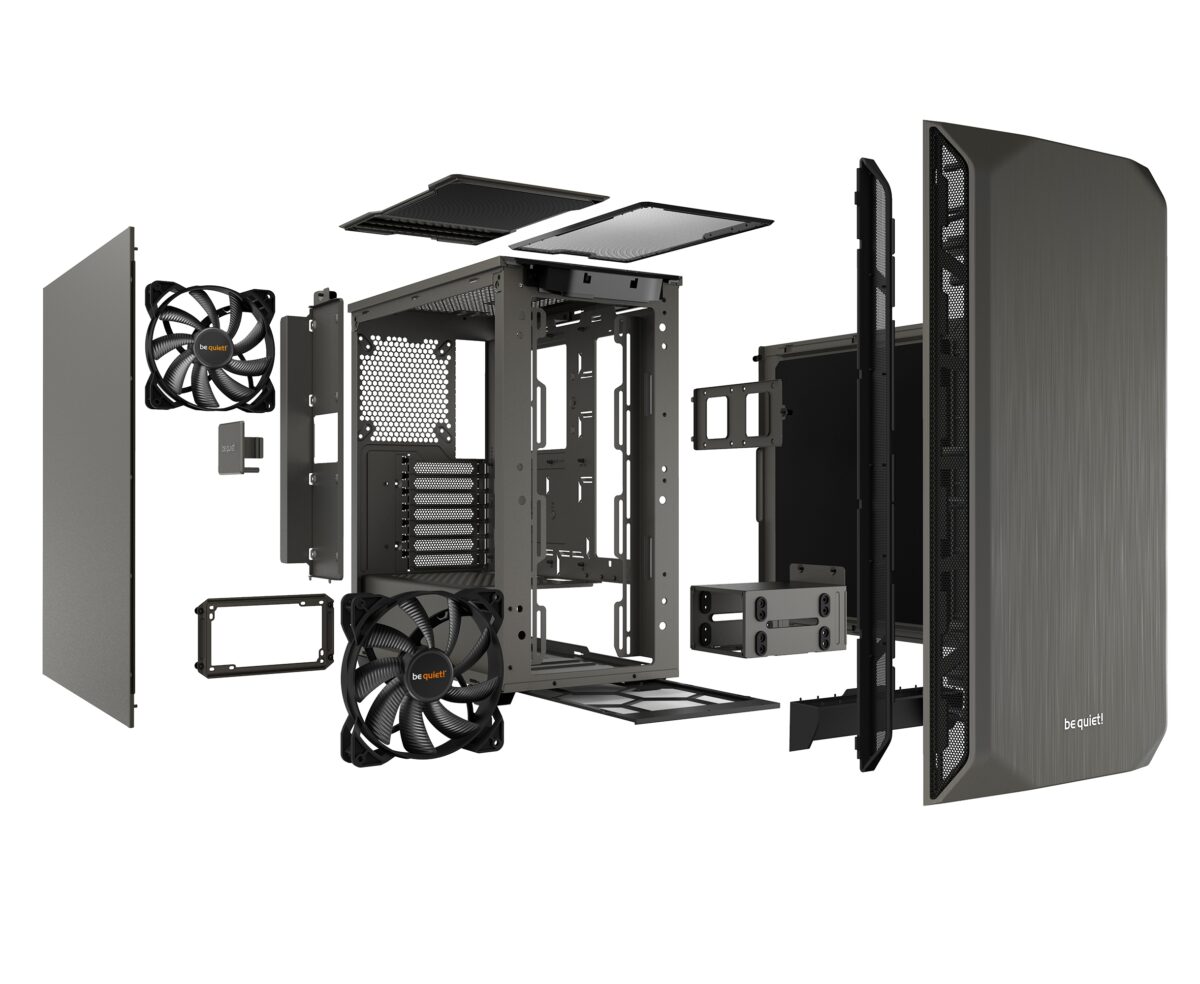

- Type: ATX Tower Case
- PSU: Without PSU
- Mainboard Support: ATX, Micro ATX, mini-ITX
- Drive Bays 3,5": 2
- Drive Bays 2,5": 5
- Expansion Slots: 7
- Cooling Fan Installed: 1x be quiet Pure Wings 2 | 140mm on Front, 1x be quiet Pure Wings 2 | 140mm Rear. The Pure Wings 2 fans have airflow-optimized fan blades that ensure perfect airflow and cooling.
- Optional Cooling Fan: Front(mm) 1x 140 | 3x 120, Top(mm) 2x 140 | 2x 120
- Optional liquid cooling system: 3 areas to install Top(mm): 120, 240, Front(mm): 120, 140, 240, 280, 360, 420 Rear(mm): 120/140
- I/O: 2x USB 3.2 Gen 1, Audio in/ out
- Max. Length Graphics Cards: 36.9cm
- Max. Height CPU Cooler: 19cm
- Sound insulation mats (top, front, side)
- Anti-vibration decoupled HDD / PSU
- Dimensions: 450 x 232 x 443 (L x W x H)
- Net Weight: 6.95 Kg
- Material: Steel, ABS plastic
- Color: Metallic Grey
- Tool-Free Devices Installation, Cable Management System
- Εγγύηση: 3 χρόνια
|
- Type: ATX Tower Case
- PSU: Without PSU
- Mainboard Support: E-ATX, ATX, Micro ATX, Mini-ITX
- Drive Bays 3,5": 7
- Drive Bays 2,5": 15
- Expansion Slots: 7+2
- Cooling Fan Installed: 2x Pure Wings 2 140mm on Front, 1x Pure Wings 2 140mm Rear. The Pure Wings 2 fans bring famous be quiet! silent cooling to entry level computing, yet are also appropriate for gaming and multimedia systems. The most important features include
- Optional Cooling Fan: Front (mm) 1x 140 / 1x 120, Top (mm) 3x 140 / 3x 120, PSU shroud 1x 140/120
- Optional liquid cooling system: 3 areas to install Top: 120, 240, 360 Front: 120, 140, 240, 280, 360, 420, Rear: 1x 140/120mm
- I/O: 2x USB 3.2, 1x USB 3.2 Type-C, Audio in/out
- Max. Length Graphics Cards: 28.7cm or without HDD slots 44.9cm
- Max. Height CPU Cooler: 18.5cm
- Sound insulation mats (top, front, side)
- Anti-vibration decoupled HDD / PSU / MB-tray / Fan
- Dimensions: 539 x 245 x 507 (L x W x H)
- Net Weight: 13.15 Kg
- Material: steel, ABS plastic, 4mm tempered glass/Steel
- Color: Black
- Cable Management System
- Εγγύηση: 3 χρόνια
| The be quiet! Dark Power Pro 12 1200W offers 80 PLUS® Titanium efficiency and world class performance due to fully digital control and frameless fan concept. The most technologically-advanced PSU be quiet! has ever built.
- 80 PLUS Titanium efficiency (up to 94.7%)
- Fully digital control (PFC, LLC, SR/12V) and full bridge topology for world class regulation and low ripple noise
- Patented frameless Silent Wings fan for virtually inaudible operation at ordinary load
- Redesigned funnel shape opening for a larger cooling area
- Full mesh PSU front for maximum airflow
- Overclocking key switches between six 12V rails and one massive 12V rail
- Wire-free inside the PSU for enhanced cooling and longevity
- Japanese 105°C capacitors ensure highest stability and reliability
- Aluminum case and modular individually sleeved cables for magnificent appearance
- Ten-year manufacturer’s warranty
- Product conception, design and quality control in Germany
- 1200W Modular Power Supply
- Comforms ATX12V V2.51 and EPS 2.92 standard
- AC Input: Voltage 100-240V, Current 16-8A, Frequency 50-60Hz
- DC Out: +3,3V max 25A, +5V max 25A, +12V1 max 35A, +12V2 max 35A, +12V3 max 35A, +12V4 max 35A, +12V5 max 40A, +12V6 max 40A -12V max 0,5A, +5Vsb max 3.5A
- Total Combine Power 1200W
- 94,7% Energy Efficiency (80+ Titanium 230V EU Certified). Active PFC
- Connectors:
- 1x ATX-Motherboard (20+4-pin)
- 1x P8 (CPU)
- 1x P4+4 (CPU)
- 10x PCI-e 6+2-pin (GPU)
- 8x PATA 4-pin
- 16x SATA 15-pin (HDD, Drives)
- 2x FDD (Floppy)
- Fan Type: be quiet! Silent Wings 3 with 135mm fan
- OCP (over current protection), OVP (over Voltage protection), UVP (under Voltage protection), SCP (short circuit protection), OTP (over temperature protection), OPP (over power protection)
- MTBF: 300.000 Hours
- Safety Approvals: CE, CB, TUV, FCC, cTUVus, RCM, CU, BSMI, CCC
- Dimensions without cable: 200(L)x150(W)x86(D)mm
- Package Dimensions: 417(L)x253(W)x152(D)mm
- Total weight: 2.41Kg
- Color: Black
- Warranty: 10 years
|
- 650W Modular Power Supply
Comforms ATX12V V2.51 and EPS 2.92 standard
- AC Input: Voltage 100-240V, Current 8-4A, Frequency 50-60Hz
- DC Out: +3,3V max 24A, +5V max 24A, +12V1 max 18A, +12V2 max 18A, +12V3 max 22A, +12V4 max 22A, -12V max 0,3A, +5Vsb max 3A
- Total Combine Power: 650W (continuous power), 720W (peak power)
- 93% Energy Efficiency (80+ Platinum 230V EU Certified). Active PFC
- Connectors:
- 1x ATX-Motherboard (20+4-pin)
- 2x P4+4 (CPU)
- 4x PCI-e 6+2-pin (GPU)
- 3x PATA 4-pin
- 9x SATA 15-pin (HDD, Drives)
- 1x FDD (Floppy)
- Fan Type: be quiet! Silent Wings 3 with 135mm fan
- OCP (over current protection), OVP (over Voltage protection), UVP (under Voltage protection), SCP (short circuit protection), OTP (over temperature protection), OPP (over power protection)
- MTBF: 100.000 Hours
- Safety Approvals: CE, CB, TUV, FCC, cTUVus, RCM, CU, BSMI, CCC
- Dimesions without cable: 160(L)x150(W)x86(D)mm
- Package Dimensions: 328(L)x248(W)x102(D)mm
- Total weight: 1.68Kg
- Color: Black
- Warranty: 5 years
|
- 650W Power Supply
- Comforms ATX12V V2.92
- AC Input: Voltage 200-240V, Current 5A, Frequency 50Hz
- DC Out: +3,3V max 20A, +5V max 20A, +12V1 max 54.17A, -12V max 0.3A, +5Vsb max 3A
- Total Combine Power 650W
- 88.5% Energy Efficiency (80+ Bronze Certified). Active PFC
- Connectors:
- 1x ATX-Motherboard (20+4-pin)
- 1x P4+4 (CPU)
- 1x P4
- 2x PCI-e 6+2-pin (GPU)
- 1x PATA
- 6x SATA
- Fan Type: Temperature-controlled quality fan with 120mm fan
- OCP (over current protection), OVP (over Voltage protection), UVP (under Voltage protection), SCP (short circuit protection), OTP (over temperature protection), OPP (over power protection), SIP (Surge & Inrush Protection)
- MTBF: 100.000 Hours
- Safety Approvals: CE, CB, TUV, CU
- Dimesions without cable: 150(L)x140(W)x86(D)mm
- Package Dimensions: 268(L)x195(W)x97(H)mm
- Total weight: 1.86Kg
- Color: Black
- Warranty: 5 years
|
- 550W Power Supply
- Comforms ATX12V V2.92
- AC Input: Voltage 200-240V, Current 4A, Frequency 50Hz
- DC Out: +3,3V max 20A, +5V max 20A, +12V1 max 45.83A, -12V max 0.3A, +5Vsb max 3A
- Total Combine Power 550W
- 89.1% Energy Efficiency (80+ Bronze Certified). Active PFC
- Connectors:
- 1x ATX-Motherboard (20+4-pin)
- 1x P4+4 (CPU)
- 1x P4
- 2x PCI-e 6+2-pin (GPU)
- 1x PATA
- 6x SATA
- Fan Type: Temperature-controlled quality fan with 120mm fan
- OCP (over current protection), OVP (over Voltage protection), UVP (under Voltage protection), SCP (short circuit protection), OTP (over temperature protection), OPP (over power protection), SIP (Surge & Inrush Protection)
- MTBF: 100.000 Hours
- Safety Approvals: CE, CB, TUV, CU
- Dimesions without cable: 150(L)x140(W)x86(D)mm
- Package Dimensions: 268(L)x195(W)x97(H)mm
- Total weight: 1.83Kg
- Color: Black
- Warranty: 5 years
|
